T2020012005-000 | TE Connectivity
Receptacle, 0.5 mm², AWG 20, crimp connection, T2020012005-000
Unit Price (€ / pc.)
4.5815 € *
Standard delivery time from the manufacturer is: 21 Weeks
Total Price:
4.58 € *
Price list
Quantity
Price per unit*
1 pcs.
4.5815 €
10 pcs.
4.2245 €
50 pcs.
3.7961 €
100 pcs.
3.4153 €
*incl. VAT plus shipping costs
Subject to prior sale

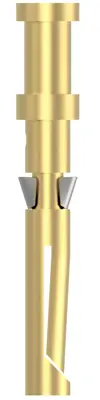

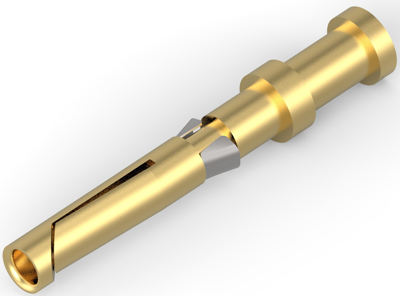

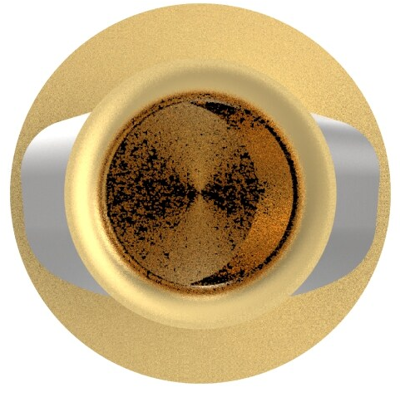

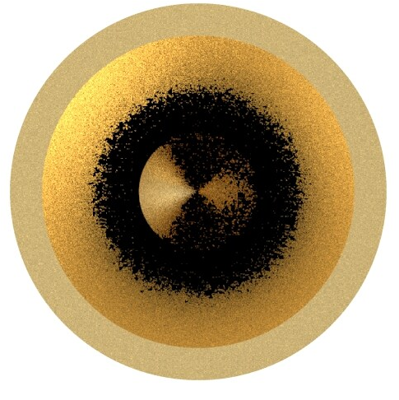

Socket contact, T2020012005-000, TE Connectivity
The T2020012005-000 is a crimp termination that represents a highly reliable vibration proof connection with low contact resistance and highest contact density which can be applied with manual and automatic crimping tools.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Contact surface mating area | gold-plated | |
| AWG cross-section | AWG 20 | |
| Contact surface Connection range | gold-plated | |
| Contact connection | crimp connection | |
| Cable cross-section | 0.5 mm² | |
| Version | receptacle | |
| Contact material | brass |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85389099 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| SVHC free | No |
| RoHS conform | Yes |
