T2020011008-000 | TE Connectivity
Pin contact, 0.75 mm², AWG 18, crimp connection, T2020011008-000
Unit Price (€ / pc.)
1.8326 € *
Available in 5 Days: 4,985 pcs. - if ordered today
Total Price:
9.16 € *
Price list
Quantity
Price per unit*
5 pcs.
1.8326 €
10 pcs.
1.7017 €
25 pcs.
1.5827 €
50 pcs.
1.4280 €
*incl. VAT plus shipping costs
Subject to prior sale

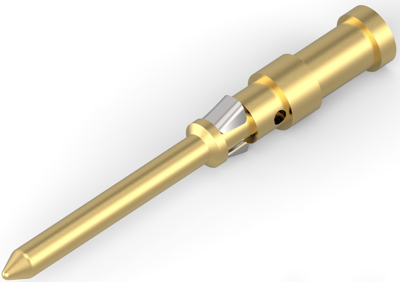

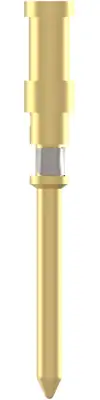

Pin contact, T2020011008-000, TE Connectivity
The T2020011008-000 is a crimp termination that represents a highly reliable vibration proof connection with low contact resistance and highest contact density which can be applied with manual and automatic crimping tools.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Contact surface mating area | gold-plated | |
| AWG cross-section | AWG 18 | |
| Version | pin contact | |
| Contact connection | crimp connection | |
| Contact surface Connection range | gold-plated | |
| Cable cross-section | 0.75 mm² | |
| Contact material | brass |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85389099 |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| Substance description | Lead |
