T2020002008-000 | TE Connectivity
Receptacle, 0.75 mm², AWG 18, crimp connection, T2020002008-000
Unit Price (€ / pc.)
0.6664 € *
Standard delivery time from the manufacturer is: 19 Weeks
Total Price:
0.67 € *
Price list
Quantity
Price per unit*
1 pcs.
0.6664 €
10 pcs.
0.5831 €
50 pcs.
0.5236 €
100 pcs.
0.4641 €
*incl. VAT plus shipping costs
Subject to prior sale

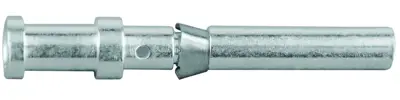

Socket contact, T2020002008-000, TE Connectivity
The T2020002008-000 is a crimp termination that represents a highly reliable vibration proof connection with low contact resistance and highest contact density which can be applied with manual and automatic crimping tools.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Contact material | brass | |
| Version | receptacle | |
| Contact connection | crimp connection | |
| Contact surface mating area | silver-plated | |
| Contact surface Connection range | silver-plated | |
| AWG cross-section | AWG 18 | |
| Cable cross-section | 0.75 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Substance description | Lead |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
