T2020001008-000 | TE Connectivity

Pin contact, 0.75 mm², AWG 18, crimp connection, T2020001008-000

Order No.: 72P3475
MPN:
T2020001008-000
Series: HDC HDD

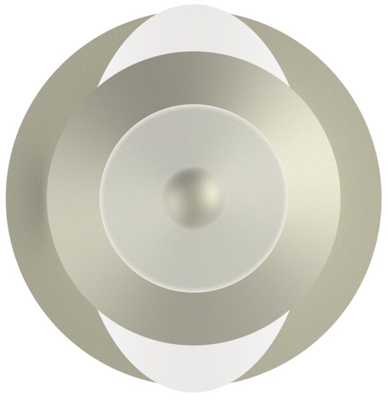

T2020001008-000 TE Connectivity Crimp Contacts Image 1

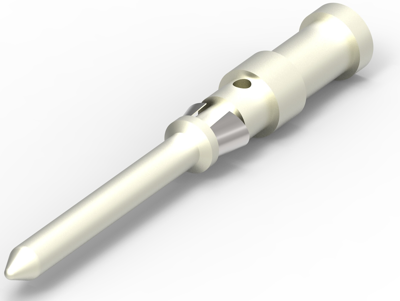

T2020001008-000 TE Connectivity Crimp Contacts Image 2

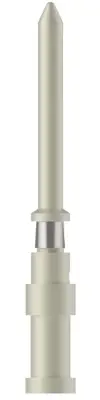

T2020001008-000 TE Connectivity Crimp Contacts Image 3
T2020001008-000 TE Connectivity Crimp Contacts Image 4
Image may differ
Unit Price (€ / pc.)
0.7021 € *
Available in 5 Days: 1,600 pcs. - if ordered today
Total Price:
0.70 € *
Price list
Quantity
Price per unit*
1 pcs.
0.7021 €
10 pcs.
0.6188 €
50 pcs.
0.5593 €
100 pcs.
0.4879 €
*incl. VAT plus shipping costs
Subject to prior sale

Pin contact, T2020001008-000, TE Connectivity

The T2020001008-000 is a crimp termination that represents a highly reliable vibration proof connection with low contact resistance and highest contact density which can be applied with manual and automatic crimping tools.

Technical specifications
Contact surface mating area silver-plated
AWG cross-section AWG 18
Contact surface Connection range silver-plated
Contact connection crimp connection
Cable cross-section 0.75 mm²
Version pin contact
Contact material brass
Logistics
Country of origin CN
Customs tariff number 85366990
Compliance
Date of RoHS guidelines 3/31/15
Substance description Lead
SVHC free No
RoHS conform Yes
