969028-5 | TE Connectivity

Tab, 0.2-0.5 mm², AWG 24-20, crimp connection, silver-plated, 969028-5

Order No.: 36P3279
EAN: 4099889644098
MPN:
969028-5

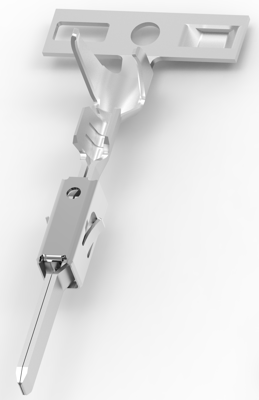

969028-5 TE Connectivity Crimp Contacts
Image may differ
Unit Price (€ / pc.)
0.4165 € *
Standard delivery time from the manufacturer is: 21 Weeks
Total Price:
4,998.00 € *
*incl. VAT plus shipping costs
Subject to prior sale
12000 pcs.
0.4165 €

Contacts for motor vehicles, 969028-5, TE Connectivity

Receptacle Style: 180°, Sealable: Yes, Primary Locking Feature: Locking Lance, Automotive terminal Wire Type: Copper, Automotive terminal Seal Type: Single Wire Seal (SWS), Crimp Type: F-Crimp, Terminal & Splice Type: Tab, Mating Tab Width: 1.6 mm, Mating Tab Thickness: 0.6 mm, Automotive terminal Interface Plating: Silver (Ag), Automotive terminal Termination Method: Crimp, Wire Size: 24 - 20 AWG, Wire Size: 0.2 - 0.5 mm², Wire Size Search: 0.2 mm², 0.22 mm², 0.25 mm², 0.3 mm², 0.35 mm².4 mm².5 mm², Wire Size Search: 20 AWG, 21 AWG, 22 AWG, 23 AWG, Wire Insulation Diameter: 1.15 - 1.6 mm, Operating Temperature Range: -40 - 130 °C.

Technical specifications
contact surface silver-plated
AWG cross-section AWG 24-20
Contact surface Connection range tin-plated
Contact connection crimp connection
Cable cross-section 0.2-0.5 mm²
Version tab
Contact material phosphor bronze
Insulation diameter 1.15-1.6 mm
Logistics
Country of origin MX
Customs tariff number 85369040
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
