7-1452671-3 | TE Connectivity

Receptacle, 1.0-1.5 mm², AWG 17-15, crimp connection, silver-plated, 7-1452671-3

Order No.: 35P9766
EAN: 4099889641349
MPN:
7-1452671-3
Series: MCON

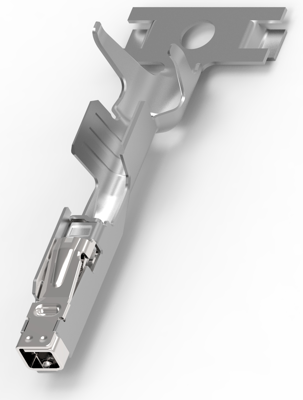

7-1452671-3 TE Connectivity Crimp Contacts
Image may differ
Unit Price (€ / pc.)
0.0714 € *
Available in 5 Days: 18,000 pcs. - if ordered today
Total Price:
428.40 € *
*incl. VAT plus shipping costs
Subject to prior sale
6000 pcs.
0.0714 €

Contacts for motor vehicles, 7-1452671-3, TE Connectivity

Receptacle Style: 180°, Sealable: Yes, Primary Locking Feature: Locking Lance, Automotive terminal Wire Type: Copper, Crimp Type: F-Crimp, Terminal & Splice Type: Receptacle, Mating Tab Width: 1.2 mm, Mating Tab Thickness: 0.6 mm, Automotive terminal Interface Plating: Silver (Ag), Automotive terminal Termination Method: Crimp, Wire Size: 16 - 18 AWG, Wire Size: 1 - 1.5 mm², Wire Size Search: 1 mm², 1.25 mm², 1.3 mm², 1.5 mm², Wire Size Search: 16 AWG, 17 AWG, Wire Insulation Diameter: 1.6 - 2.4 mm, 140 °C, 145 °C, 150 °C, Operating Temperature Range: -40 - 150 °C.

Technical specifications
Filter Property Value
Version receptacle
Contact material phosphor bronze
Contact connection crimp connection
Cable cross-section 1.0-1.5 mm²
Contact surface Connection range tin-plated
Insulation diameter 1.6-2.4 mm
AWG cross-section AWG 17-15
contact surface silver-plated
Logistics
Property Value
Customs tariff number 85369095
Country of origin DE
Compliance
Property Value
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
