5-1437720-7 | TE Connectivity

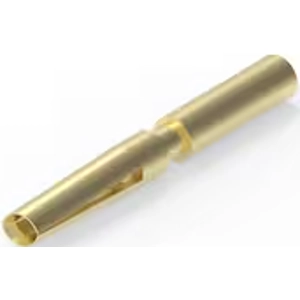

Receptacle, 0.14-0.34 mm², AWG 26-22, crimp connection, 5-1437720-7
Order No.: 38P6725
EAN: 4099889650884
MPN:
5-1437720-7
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
5.1051 € *
Standard delivery time from the manufacturer is: 18 Weeks
Total Price:
5.11 € *
Price list
Quantity
Price per unit*
1 pcs.
5.1051 €
10 pcs.
4.7362 €
25 pcs.
4.4268 €
50 pcs.
4.0222 €
*incl. VAT plus shipping costs
Subject to prior sale
Connector contact, 5-1437720-7, TE Connectivity
Connector & Contact Terminates To: Wire & Cable, Contact Mating Area Plating Thickness: 4 µm, Contact Type: Socket, Contact Mating Area Plating Material: Tribor, Contact Base Material: Brass, Contact Current Rating (Max): 1 A, Wire Size: 26 - 22 AWG, Wire Size: 0.14 - 0.34 mm².
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | receptacle | |
| Cable cross-section | 0.14-0.34 mm² | |
| AWG cross-section | AWG 26-22 | |
| Contact connection | crimp connection | |
| Contact material | brass | |
| Contact surface mating area | gold-plated |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | US |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| Substance description | Lead |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
