368087-1 | TE Connectivity

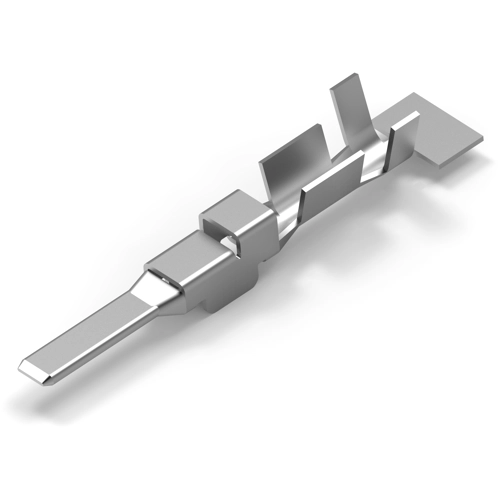

Tab, 0.85-1.25 mm², AWG 18-16, crimp connection, tin-plated, 368087-1
Unit Price (€ / pc.)
0.0714 € *
Standard delivery time from the manufacturer is: 21 Weeks
Total Price:
0.71 € *
Price list
Quantity
Price per unit*
10 pcs.
0.0714 €
50 pcs.
0.0666 €
100 pcs.
0.0619 €
250 pcs.
0.0559 €
*incl. VAT plus shipping costs
Subject to prior sale
Contacts for motor vehicles, 368087-1, TE Connectivity
Receptacle Style: Straight, Sealable: No, Primary Locking Feature: Clean Body, Automotive terminal Wire Type: Copper, Insulated: Yes, Crimp Type: F-Crimp, Terminal & Splice Type: Tab, Mating Tab Width: 2.3 mm, Mating Tab Thickness: 0.64 mm, Automotive terminal Interface Plating: Tin (Sn), Automotive terminal Termination Method: Crimp, Wire Size: 0.85 - 1.25 mm², Wire Size Search: 0.85 mm², 1 mm², 1.25 mm², Wire Insulation Diameter: 1.8 - 2.6 mm, Operating Temperature Range: -40 - 80 °C.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Contact connection | crimp connection | |
| contact surface | tin-plated | |
| AWG cross-section | AWG 18-16 | |
| Contact material | brass | |
| Insulation diameter | 1.8-2.6 mm | |
| Version | tab | |
| Cable cross-section | 0.85-1.25 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
