284107-1 | TE Connectivity

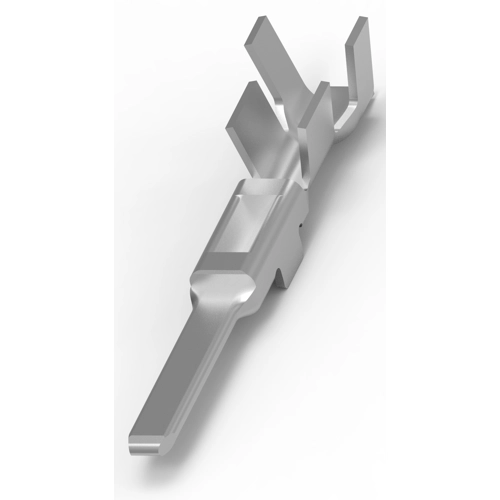

Tab, 0.75-1.5 mm², AWG 18-16, crimp connection, tin-plated, 284107-1
Order No.: 36P1799
EAN: 4099889642773
MPN:
284107-1
Unit Price (€ / pc.)
0.2975 € *
Standard delivery time from the manufacturer is: 16 Weeks
Total Price:
1.49 € *
Price list
Quantity
Price per unit*
5 pcs.
0.2975 €
10 pcs.
0.2749 €
25 pcs.
0.2570 €
50 pcs.
0.2321 €
*incl. VAT plus shipping costs
Subject to prior sale
Contacts for motor vehicles, 284107-1, TE Connectivity
Sealable: No, Primary Locking Feature: Clean Body, Automotive terminal Wire Type: Copper, Crimp Type: F-Crimp, Terminal & Splice Type: Tab, Mating Tab Width: 1.8 mm, Mating Tab Thickness: 0.64 mm, Automotive terminal Interface Plating: Tin (Sn), Automotive terminal Termination Method: Crimp, Wire Size: 0.75 - 1.5 mm², Wire Size Search: 0.75 mm², 0.85 mm², 1 mm², 1.25 mm², 1.3 mm², 1.5 mm², Wire Size Search: 15 AWG, 6 AWG, 17 AWG, Wire Insulation Diameter: 1.7 - 2.4 mm, 105 °C, Operating Temperature Range: -30 - 105 °C.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 18-16 | |
| contact surface | tin-plated | |
| Version | tab | |
| Contact connection | crimp connection | |
| Contact surface Connection range | tin-plated | |
| Cable cross-section | 0.75-1.5 mm² | |
| Insulation diameter | 1.7-2.4 mm | |
| Contact material | brass |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | US |
| Customs tariff number | 85369095 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
