2825211-1 | TE Connectivity

Name: Receptacle, 0.33-0.82 mm², AWG 22-18, crimp connection, 2825211-1
Brand: TE Connectivity
SKU: 71P6988
Price: 0.16 EUR
Availability: OutOfStock

Receptacle, 0.33-0.82 mm², AWG 22-18, crimp connection, 2825211-1

Order No.: 71P6988

EAN: 4099889985184

MPN:

2825211-1

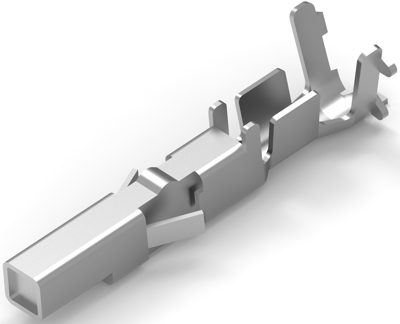

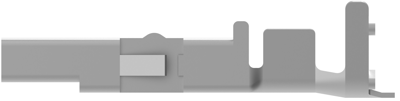

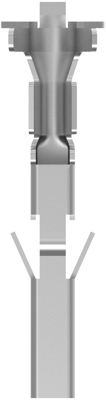

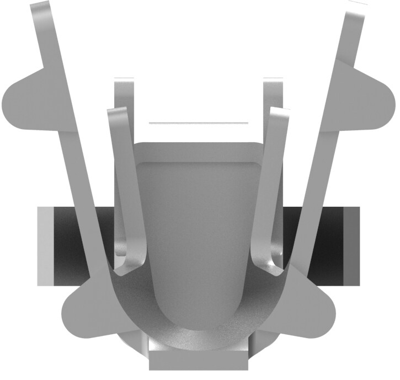

Image may differ

Key Specification:

Version receptacle

Cable cross-section 0.33-0.82 mm²

AWG cross-section AWG 22-18

Contact connection crimp connection

Contact material copper alloy

Ordering Information:

not to be sold to private customers

Download Datasheet Technical specifications

Unit Price (€ / pc.)

0.1583 € *

Available: 0 pcs.

Available in 5 Days: 7,000 pcs.

Leadtime: 1 Week **

Add to Cart

Total Price:

0.16 € *

Price list

Quantity

Price per unit*

3500 pcs.

0.1583 €

7000 pcs.

0.1428 €

*incl. VAT plus shipping costs

**Subject to prior sale

Description

Socket contact, 2825211-1, TE Connectivity

Power contact, Contact, 600 VAC, Tin, 22 - 18 AWG Wire size, 0.33 - .82 mm² Wire size, Wire & Cable, Crimp, Power, Socket, -40 - 105 °C.

Technical specifications

	Version	receptacle
	AWG cross-section	AWG 22-18
	Insulation diameter	1.5-3.1 mm
	Contact connection	crimp connection
	Contact material	copper alloy
	Contact surface Connection range	tin-plated
	Contact surface mating area	tin-plated
	Cable cross-section	0.33-0.82 mm²
