2232983-1 | TE Connectivity

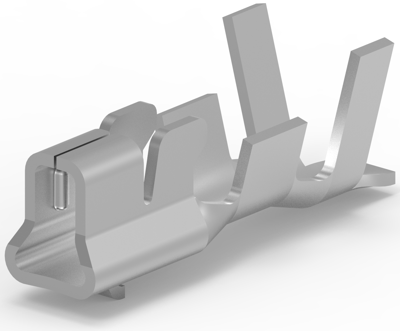

Receptacle, 0.2-0.56 mm², AWG 24-20, crimp connection, tin-plated, 2232983-1
Unit Price (€ / pc.)
0.0202 € *
Standard delivery time from the manufacturer is: 20 Weeks
Wire-to-board connector contact, 2232983-1, TE Connectivity
Applied Pressure: Low, Connector System: Wire-to-Board, Sealable: No, Connector & Contact Terminates To: Wire & Cable, Operating Voltage: 250 VAC, Contact Base Material: Phosphor Bronze, Contact Type: Socket, Contact Mating Area Plating Material: Pre-Tin, Contact Current Rating (Max): 4.5 A, Termination Method to Wire & Cable: Crimp, Wire Insulation Support: With, Connector Mounting Type: Cable Mount (Free-Hanging), Centerline (Pitch): 2.5 mm, Accepts Wire Insulation Diameter Range: 1.3 - 1.91 mm, Wire Size: 24 - 22 AWG, Wire Size: 0.2 - 0.56 mm², Operating Temperature Range: -55 - 105 °C.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 24-20 | |
| Contact material | phosphor bronze | |
| Cable cross-section | 0.2-0.56 mm² | |
| Insulation diameter | 1.3-1.91 mm | |
| Contact surface mating area | tin-plated | |
| contact surface | tin-plated | |
| Version | receptacle | |
| Contact connection | crimp connection |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369040 |
| Country of origin | TW |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
