2232724-1 | TE Connectivity

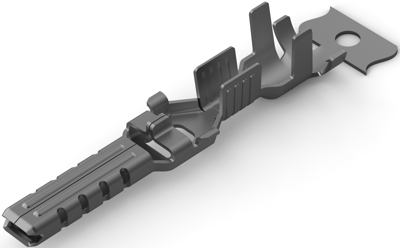

Pin contact, 0.65-1.31 mm², AWG 20-16, crimp connection, 2232724-1
Order No.: 35P3851
EAN: 4099889637021
MPN:
2232724-1
Unit Price (€ / pc.)
0.0690 € *
Standard delivery time from the manufacturer is: 12 Weeks
Total Price:
6.90 € *
Price list
Quantity
Price per unit*
100 pcs.
0.0690 €
250 pcs.
0.0643 €
500 pcs.
0.0595 €
1000 pcs.
0.0536 €
*incl. VAT plus shipping costs
Subject to prior sale
Power contact, 2232724-1, TE Connectivity
Power contact Type: Contact, Connector System: Wire-to-Wire, Sealable: No, Connector & Contact Terminates To: Wire & Cable, Operating Voltage: 600 VAC, Contact Mating Area Plating Material: Tin, Contact Current Rating (Max): 7.5 A, Contact Type: Tab, Contact Retention Within Housing: Without, Mating Tab Width: 2.7 mm, Termination Method to Wire & Cable: Crimp, Wire Insulation Support: With, Wire Size: 19 - 16 AWG, Wire Size: 0.65 - 1.31 mm², Wire Size: 1200 - 2600 CMA, Accepts Wire Insulation Diameter Range: 2 - 3.3 mm, Operating Temperature Range: -55 - 105 °C.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Contact surface mating area | tin-plated | |
| AWG cross-section | AWG 20-16 | |
| Version | pin contact | |
| Contact connection | crimp connection | |
| Contact surface Connection range | tin-plated | |
| Cable cross-section | 0.65-1.31 mm² | |
| Insulation diameter | 2-3.3 mm | |
| Contact material | brass |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | TW |
| Customs tariff number | 85369040 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
