2226923-1 | TE Connectivity
Receptacle, 0.34 mm², AWG 22, crimp connection, 2226923-1
Unit Price (€ / pc.)
3.2725 € *
Available in 5 Days: 2,932 pcs. - if ordered today
Total Price:
3.27 € *
Price list
Quantity
Price per unit*
1 pcs.
3.2725 €
10 pcs.
3.0345 €
25 pcs.
2.8322 €
50 pcs.
2.5823 €
*incl. VAT plus shipping costs
Subject to prior sale

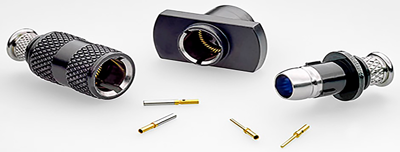

Micro circular connector, 2226923-1, TE Connectivity
The 2226923-1 features a push-pull coupling and Quick disconnect per the US Army’s Nett Warrior specification. This product has a lightweight aluminum shell and thermoplastic inserts.
Features
- Very small footprint
- Ruggedized for battlefield conditions
Applications
- Soldier Vest Cable
- Batteries
- Antennas
- Communication/Power Hubs
- Military Vehicles
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 22 | |
| Contact material | copper alloy | |
| Cable cross-section | 0.34 mm² | |
| Contact surface mating area | gold-plated | |
| Version | receptacle | |
| Contact connection | crimp connection | |
| Contact surface Connection range | gold-plated |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85389099 |
| Country of origin | US |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Substance description | Lead |
| Date of RoHS guidelines | 3/31/15 |
