2177610-3 | TE Connectivity

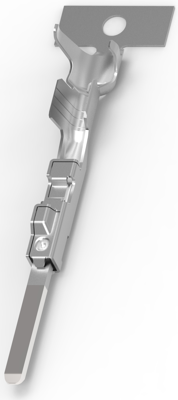

Tab, 1.0-1.5 mm², AWG 17-15, crimp connection, silver-plated, 2177610-3
Unit Price (€ / pc.)
0.1131 € *
Standard delivery time from the manufacturer is: 17 Weeks
Contacts for motor vehicles, 2177610-3, TE Connectivity
Receptacle Style: 180°, Sealable: Yes, Primary Locking Feature: Clean Body, Automotive terminal Wire Type: Copper, Crimp Type: F-Crimp, Terminal & Splice Type: Tab, Mating Tab Width: 1.2 mm, Mating Tab Thickness: 0.6 mm, Automotive terminal Interface Plating: Silver (Ag), Automotive terminal Termination Method: Crimp, Wire Size: 1 - 1.5 mm², Wire Size Search: 1 mm², 1.25 mm², 1.3 mm², 1.5 mm², Wire Insulation Diameter: 2.6 mm, 140 °C, 145 °C, 150 °C, Operating Temperature Range: -40 - 150 °C.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 17-15 | |
| Contact connection | crimp connection | |
| contact surface | silver-plated | |
| Version | tab | |
| Contact material | phosphor bronze | |
| Cable cross-section | 1.0-1.5 mm² | |
| Insulation diameter | 2.6 mm | |
| Contact surface Connection range | tin-plated |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369040 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
