2110989-1 | TE Connectivity
Receptacle, 0.13-0.36 mm², AWG 26-22, crimp connection, 2110989-1
Unit Price (€ / pc.)
0.0226 € *
Available in 5 Days: 240,000 pcs. - if ordered today

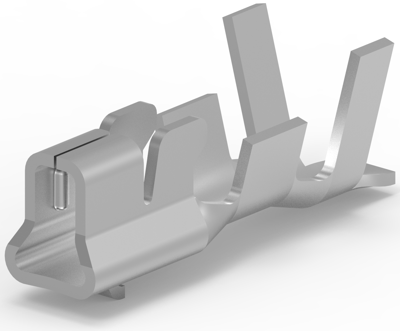

Wire-to-board connector contact, 2110989-1, TE Connectivity
Connector System: Wire-to-Board, Sealable: No, Connector & Contact Terminates To: Wire & Cable, Compatible With Wire & Cable Type: Discrete Wire, Contact Base Material: Phosphor Bronze, Contact Type: Socket, Contact Mating Area Plating Material: Tin, Contact Current Rating (Max): 4.5 A, Termination Method to Wire & Cable: Crimp, Connector Mounting Type: Cable Mount (Free-Hanging), Centerline (Pitch): 2.5 mm, Accepts Wire Insulation Diameter Range: 1.3 - 1.7 mm, Wire Size: 26 - 22 AWG, Wire Size: 0.13 - 0.36 mm², Operating Temperature Range: -25 - 105 °C.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 26-22 | |
| Contact material | phosphor bronze | |
| Cable cross-section | 0.13-0.36 mm² | |
| Insulation diameter | 1.3-1.7 mm | |
| Contact surface mating area | tin-plated | |
| Version | receptacle | |
| Contact connection | crimp connection |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
