2098762-1 | TE Connectivity

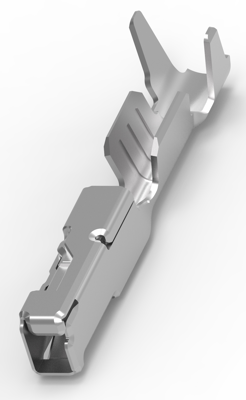

Receptacle, 0.35-0.5 mm², AWG 22-20, crimp connection, tin-plated, 2098762-1
Order No.: 35P9430
EAN: 4099889640779
MPN:
2098762-1
Unit Price (€ / pc.)
0.1714 € *
Available in 5 Days: 80,679 pcs. - if ordered today
Contacts for motor vehicles, 2098762-1, TE Connectivity
Receptacle Style: 180°, Sealable: No, Primary Locking Feature: Clean Body, Automotive terminal Wire Type: Copper, Crimp Type: F-Crimp, Terminal & Splice Type: Receptacle, Mating Tab Width: 0.8 mm, Mating Tab Thickness: 0.64 mm, Automotive terminal Interface Plating: Tin (Sn), Automotive terminal Termination Method: Crimp, Wire Size: 22 - 20 AWG, Wire Size: 0.35 - 0.5 mm², Wire Size Search: 0.35 mm², 0.4 mm², 0.5 mm², Wire Size Search: 20 AWG, 22 AWG, Wire Insulation Diameter: 1.5 - 1.85 mm.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 22-20 | |
| Contact material | copper-nickel alloy | |
| Cable cross-section | 0.35-0.5 mm² | |
| Insulation diameter | 1.5-1.85 mm | |
| contact surface | tin-plated | |
| Version | receptacle | |
| Contact connection | crimp connection | |
| Contact surface Connection range | tin-plated |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369040 |
| Country of origin | TW |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
