2-2141600-2 | TE Connectivity

Name: Tab, 2.5-4.0 mm², AWG 13-11, crimp connection, silver-plated, 2-2141600-2
Brand: TE Connectivity
SKU: 36P3538
Availability: InStock

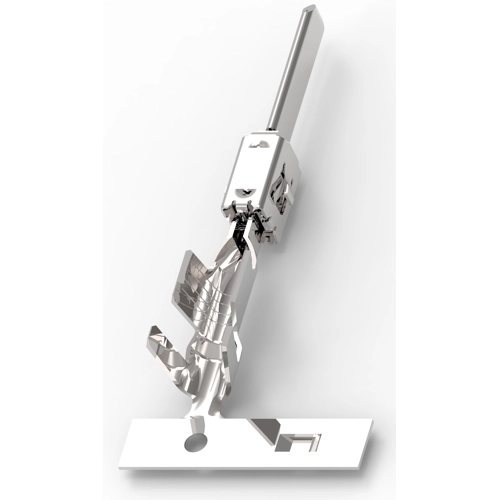

Tab, 2.5-4.0 mm², AWG 13-11, crimp connection, silver-plated, 2-2141600-2

Order No.: 36P3538

EAN: 4099889645859

MPN:

2-2141600-2

Image may differ

Key Specification:

Version tab

Cable cross-section 2.5-4.0 mm²

AWG cross-section AWG 13-11

Contact connection crimp connection

Contact material copper-iron alloy

Download Datasheet Technical specifications

Unit Price (€ / pc.)

1.0591 € *

Available in 5 Days: 8,100 pcs. - if ordered today

Total Price:

2,859.57 € *

*incl. VAT plus shipping costs

Subject to prior sale

Description

Contacts for motor vehicles, 2-2141600-2, TE Connectivity

Sealable: No, Primary Locking Feature: Locking Lance, Automotive terminal Wire Type: Copper, Crimp Type: F-Crimp, Terminal & Splice Type: Tab, Mating Tab Width: 2.8 mm, Mating Tab Thickness: 0.8 mm, Automotive terminal Interface Plating: Silver (Ag), Automotive terminal Termination Method: Crimp, Wire Size: 2.5 - 4 mm², Wire Size Search: 2.5 mm², 3 mm², 4 mm², Wire Insulation Diameter: 2.7 - 3.7 mm, 140 °C, Operating Temperature Range: -40 - 140 °C.

Technical specifications

Filter	Property	Value
	AWG cross-section	AWG 13-11
	Contact material	copper-iron alloy
	Cable cross-section	2.5-4.0 mm²
	Insulation diameter	2.7-3.7 mm
	contact surface	silver-plated
	Version	tab
	Contact connection	crimp connection
