2-1703930-1 | TE Connectivity

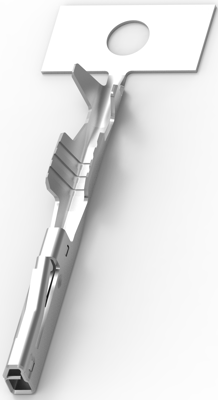

Receptacle, 0.22-0.35 mm², AWG 24-22, crimp connection, tin-plated, 2-1703930-1
Order No.: 71F6311
EAN: 4099889662108
MPN:
2-1703930-1
Unit Price (€ / pc.)
0.0845 € *
Available: 0 pcs.
Available in 5 Days: 68,000 pcs.
Leadtime: 12 Weeks **
Total Price:
1,436.33 € *
*incl. VAT plus shipping costs
**Subject to prior sale
17000 pcs.
0.0845 €
Contacts for motor vehicles, 2-1703930-1, TE Connectivity
Receptacle Style: 180°, Sealable: No, Primary Locking Feature: Locking Lance, Wire Type: Copper, Crimp Type: F-Crimp, Terminal & Splice Type: Receptacle, Mating Tab Width: 0.5 mm, Mating Tab Thickness: 0.4 mm, Interface Plating: Tin (Sn), Termination Method: Crimp, Wire Size: 24 - 22 AWG, Wire Size: 0.22 -0.35 mm², Wire Size Search: 22 AWG, 24 AWG, Wire Size Search: 0.22 mm², 0.25 mm², 0.3 mm², 0.35 mm², Wire Insulation Diameter: 0.95 - 1.3 mm, Operating Temperature Range: -40 - 105 °C.
Technical specifications
| Version | Buchsenkontakt | |
| AWG cross-section | AWG 24-22 | |
| Insulation diameter | 0,95-1,3 mm | |
| Contact connection | Crimpanschluss | |
| Contact material | Phosphorbronze | |
| Contact surface Connection range | verzinnt | |
| contact surface | verzinnt | |
| Cable cross-section | 0,22-0,35 mm² |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
| Original Packaging | Rolle mit 17.000 Stück |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
