2-1241408-3 | TE Connectivity
Receptacle, 4.0-6.0 mm², AWG 11-9, crimp connection, silver-plated, 2-1241408-3
Order No.: 35P9011
EAN: 4099889640144
MPN:
2-1241408-3
Unit Price (€ / pc.)
0.714 € *
Standard delivery time from the manufacturer is: 31 Weeks

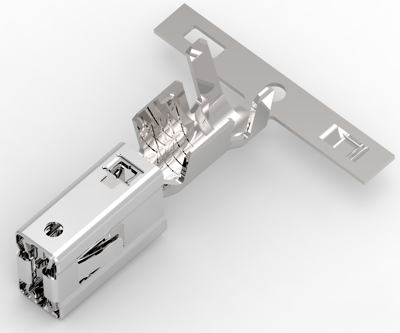

Socket contact, 2-1241408-3, TE Connectivity
Receptacle Style: 180°, Sealable: No, Primary Locking Feature: Locking Lance, Wire Type: Copper, Crimp Type: F-Crimp, Terminal & Splice Type: Receptacle, Mating Tab Width: 4.8 mm, 5.8 mm, 6.3 mm, Mating Tab Thickness: 0.8 mm, Interface Plating: Silver (Ag), Termination Method: Crimp, Wire Size: 4 - 6 mm², Wire Size Search: 4 mm², 5 mm², 6 mm², Wire Insulation Diameter: 3.4 - 4.3 mm, Operating Temperature Range: -40 - 180 °C.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 11-9 | |
| contact surface | silver-plated | |
| Version | receptacle | |
| Contact connection | crimp connection | |
| Contact surface Connection range | tin-plated | |
| Cable cross-section | 4.0-6.0 mm² | |
| Insulation diameter | 3.4-4.3 mm | |
| Contact material | copper-nickel alloy |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | JP |
| Customs tariff number | 85369040 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
