1971795-1 | TE Connectivity

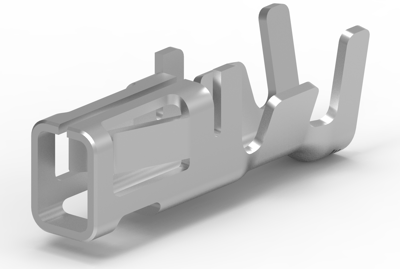

Receptacle, 0.079-0.38 mm², AWG 28-22, crimp connection, 1971795-1
Order No.: 34P8828
EAN: 4099889635553
MPN:
1971795-1
Unit Price (€ / pc.)
0.0238 € *
Standard delivery time from the manufacturer is: 22 Weeks
Wire-to-board connector contact, 1971795-1, TE Connectivity
Connector System: Wire-to-Wire, Sealable: No, Connector & Contact Terminates To: Wire & Cable, Compatible With Wire & Cable Type: Discrete Wire, Operating Voltage: 50 VAC, Contact Base Material: Copper Alloy, Contact Type: Socket, Contact Mating Area Plating Material: Pre-Tin, Contact Current Rating (Max): 3 A, Termination Method to Wire & Cable: Crimp, Contact Retention Type Within Housing: Locking Lance, Connector Mounting Type: Cable Mount (Free-Hanging), Accepts Wire Insulation Diameter Range: 1.08 - 1.5 mm, Wire Size: 28 - 22 AWG, Wire Size: 0.079 - 0.38 mm², Operating Temperature Range: -30 - 105 °C.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 28-22 | |
| Contact material | copper alloy | |
| Cable cross-section | 0.079-0.38 mm² | |
| Insulation diameter | 1.08-1.5 mm | |
| Contact surface mating area | tin-plated | |
| Version | receptacle | |
| Contact connection | crimp connection |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366910 |
| Country of origin | TW |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
