1971786-1 | TE Connectivity
Pin contact, 0.2-0.5 mm², AWG 22-20, crimp connection, tin-plated, 1971786-1
Unit Price (€ / pc.)
0.0547 € *
Standard delivery time from the manufacturer is: 28 Weeks
Total Price:
5.47 € *
Price list
Quantity
Price per unit*
100 pcs.
0.0547 €
250 pcs.
0.0500 €
500 pcs.
0.0464 €
1000 pcs.
0.0417 €
*incl. VAT plus shipping costs
Subject to prior sale

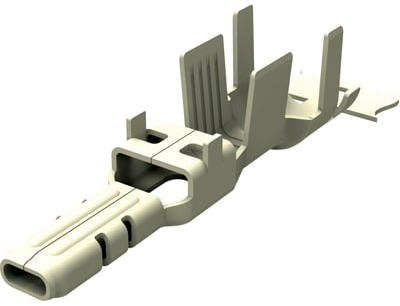

Tab contact for Cable connector POWER TRIPLE LOCK.
Contact material: tinned copper alloy.
Technical attributes (type, for wire cross-section): 1971786-1, AWG 22 (0.34mm²²)
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | pin contact | |
| Cable cross-section | 0.2-0.5 mm² | |
| AWG cross-section | AWG 22-20 | |
| Contact connection | crimp connection | |
| Contact material | brass | |
| Contact surface mating area | tin-plated | |
| contact surface | tin-plated | |
| Contact surface Connection range | tin-plated | |
| Insulation diameter | 1.43-2.7 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | TW |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
