1971784-2 | TE Connectivity

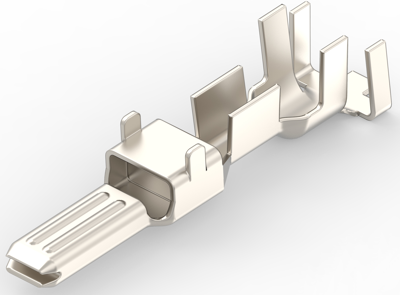

Pin contact, 0.65-1.3 mm², AWG 19-16, crimp connection, 1971784-2
Unit Price (€ / pc.)
0.0821 € *
Available in 5 Days: 29,600 pcs. - if ordered today
Total Price:
8.21 € *
Price list
Quantity
Price per unit*
100 pcs.
0.0821 €
250 pcs.
0.0750 €
500 pcs.
0.0702 €
1000 pcs.
0.0631 €
*incl. VAT plus shipping costs
Subject to prior sale
Power contact, 1971784-2, TE Connectivity
Power contact Type: Contact, Connector System: Wire-to-Wire, Connector & Contact Terminates To: Wire & Cable, Continuous Current Rating: 15 A, Operating Voltage: 600 VAC, Operating Voltage: 600 VDC, Contact Mating Area Plating Material: Pre-Tin, Contact Current Rating (Max): 15 A, Contact Type: Tab, Contact Retention Within Housing: Without, Mating Tab Width: 2.7 mm, Termination Method to Wire & Cable: Crimp, Connector Mounting Type: Cable Mount (Free-Hanging), Wire Insulation Support: With, Wire Size: 19 - 16 AWG, Wire Size: 0.65 - 1.3 mm², Accepts Wire Insulation Diameter Range: 2 - 3.3 mm, Operating Temperature Range: -55 - 150 °C.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Contact surface mating area | tin-plated | |
| AWG cross-section | AWG 19-16 | |
| Version | pin contact | |
| Contact connection | crimp connection | |
| Contact surface Connection range | tin-plated | |
| Cable cross-section | 0.65-1.3 mm² | |
| Insulation diameter | 2-3.3 mm | |
| Contact material | copper alloy |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | TW |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
