1971783-1 | TE Connectivity

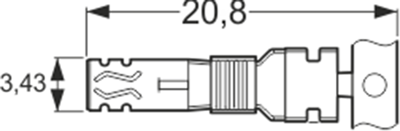

Receptacle, 0.65-1.3 mm², AWG 19-16, crimp connection, 1971783-1
Unit Price (€ / pc.)
0.0631 € *
Available in 5 Days: 22,200 pcs. - if ordered today
Total Price:
466.72 € *
Price list
Quantity
Price per unit*
7400 pcs.
0.0631 €
11100 pcs.
0.0559 €
*incl. VAT plus shipping costs
Subject to prior sale
Receptacle contact for Cable connector POWER TRIPLE LOCK
Contact material: tinned copper alloy.
Technical attributes (type, for wire cross-section): 1971783-1, AWG 20-16 (0.56 to 1.27mm²²)
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Contact surface mating area | tin-plated | |
| AWG cross-section | AWG 19-16 | |
| Contact surface Connection range | tin-plated | |
| Contact connection | crimp connection | |
| Cable cross-section | 0.65-1.3 mm² | |
| Version | receptacle | |
| Contact material | phosphor bronze | |
| Insulation diameter | 2-3.3 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | TW |
| Customs tariff number | 85366990 |
| Original Packaging | Reel with 3,700 pieces |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
