1971781-1 | TE Connectivity

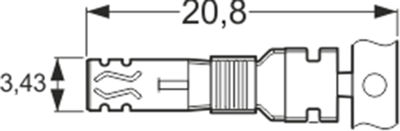

Receptacle, 2.0 mm², AWG 14, crimp connection, tin-plated, 1971781-1
Unit Price (€ / pc.)
0.1202 € *
Standard delivery time from the manufacturer is: 30 Weeks
Receptacle contact for Cable connector POWER TRIPLE LOCK
Contact material: tinned copper alloy.
Technical attributes (type, for wire cross-section): 1971781-1, AWG 14 (2.1mm²²)
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | receptacle | |
| Cable cross-section | 2.0 mm² | |
| AWG cross-section | AWG 14 | |
| Contact connection | crimp connection | |
| Contact material | phosphor bronze | |
| Contact surface mating area | tin-plated | |
| contact surface | tin-plated | |
| Contact surface Connection range | tin-plated | |
| Insulation diameter | 3.4-3.7 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | TW |
| Customs tariff number | 85366990 |
| Original Packaging | Reel with 4,000 pieces |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
