1971779-2 | TE Connectivity

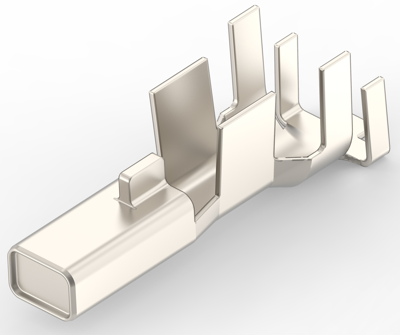

Receptacle, 4.0 mm², AWG 12, crimp connection, 1971779-2
Unit Price (€ / pc.)
0.1499 € *
Available in 5 Days: 12,500 pcs. - if ordered today
Total Price:
1.50 € *
Price list
Quantity
Price per unit*
10 pcs.
0.1499 €
50 pcs.
0.1392 €
100 pcs.
0.1297 €
250 pcs.
0.1166 €
*incl. VAT plus shipping costs
Subject to prior sale
Power contact, 1971779-2, TE Connectivity
Power contact Type: Contact, Connector System: Wire-to-Wire, Connector & Contact Terminates To: Wire & Cable, Continuous Current Rating: 20 A, Operating Voltage: 600 VAC, Operating Voltage: 600 VDC, Contact Mating Area Plating Material: Pre-Tin, Contact Current Rating (Max): 20 A, Contact Type: Receptacle, Contact Retention Within Housing: Without, Mating Tab Width: 2.7 mm, Termination Method to Wire & Cable: Crimp, Connector Mounting Type: Cable Mount (Free-Hanging), Wire Insulation Support: With, Wire Size: 12 AWG, Wire Size: 3 mm², Accepts Wire Insulation Diameter Range: 3.85 - 4.25 mm, Operating Temperature Range: -55 - 150 °C.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 12 | |
| Contact material | copper alloy | |
| Contact connection | crimp connection | |
| Version | receptacle | |
| Cable cross-section | 4.0 mm² | |
| Contact surface Connection range | tin-plated | |
| Contact surface mating area | tin-plated | |
| Insulation diameter | 3.85-4.25 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
