1924968-2 | TE Connectivity

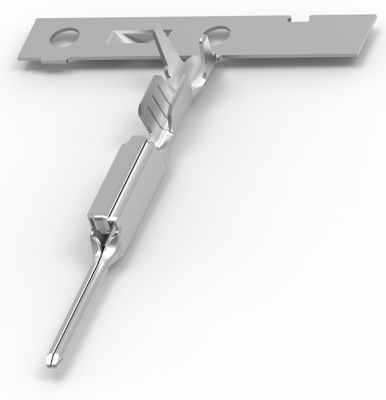

Tab, 0.75 mm², AWG 18, crimp connection, tin-plated, 1924968-2
Order No.: 35P9416
EAN: 4099889640670
MPN:
1924968-2
Unit Price (€ / pc.)
0.0702 € *
Standard delivery time from the manufacturer is: 7 Weeks
Contacts for motor vehicles, 1924968-2, TE Connectivity
Receptacle Style: 180°, Sealable: No, Primary Locking Feature: Clean Body, Automotive terminal Wire Type: Copper, Automotive terminal Seal Type: Family Seal, Crimp Type: F-Crimp, Terminal & Splice Type: Tab, Mating Tab Width: 0.8 mm, Mating Tab Thickness: 0.64 mm, Automotive terminal Interface Plating: Tin (Sn), Automotive terminal Termination Method: Crimp, Wire Size: 18 AWG, Wire Size: 0.75 mm², Wire Size Search: 0.75 mm², Wire Insulation Diameter: 1.6 - 2.06 mm, Operating Temperature Range: -40 - 100 °C.
Technical specifications
| contact surface | tin-plated | |
| AWG cross-section | AWG 18 | |
| Contact surface Connection range | tin-plated | |
| Contact connection | crimp connection | |
| Cable cross-section | 0.75 mm² | |
| Version | tab | |
| Contact material | brass | |
| Insulation diameter | 2.06 mm |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85366990 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
