1827855-1 | TE Connectivity

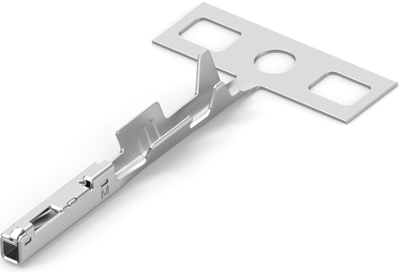

Receptacle, 0.22-0.35 mm², AWG 24-22, crimp connection, tin-plated, 1827855-1
Order No.: 35P8572
EAN: 4099889638868
MPN:
1827855-1
Unit Price (€ / pc.)
0.0797 € *
Available in 5 Days: 87,000 pcs. - if ordered today
Total Price:
1,156.09 € *
Price list
Quantity
Price per unit*
14500 pcs.
0.0797 €
29000 pcs.
0.0774 €
*incl. VAT plus shipping costs
Subject to prior sale
Contacts for motor vehicles, 1827855-1, TE Connectivity
Sealable: No, Primary Locking Feature: Clean Body, Automotive terminal Wire Type: Copper, Crimp Type: F-Crimp, Terminal & Splice Type: Receptacle, Mating Tab Width: 0.5 mm, Mating Tab Thickness: 0.4 mm, Automotive terminal Interface Plating: Tin (Sn), Automotive terminal Termination Method: Crimp, Wire Size: 0.22 - 0.35 mm², Wire Size Search: 0.22 mm², 0.25 mm², 0.3 mm², 0.35 mm², Wire Size Search: 22 AWG, 23 AWG, Wire Insulation Diameter: 0.95 - 1.2 mm, Operating Temperature Range: -30 - 90 °C.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 24-22 | |
| Contact material | copper alloy | |
| Cable cross-section | 0.22-0.35 mm² | |
| Insulation diameter | 0.95-1.2 mm | |
| contact surface | tin-plated | |
| Version | receptacle | |
| Contact connection | crimp connection |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | US |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
