1775442-1 | TE Connectivity

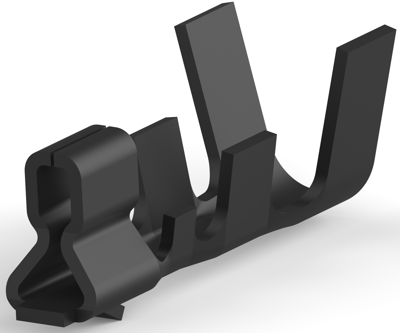

Receptacle, 0.02-0.05 mm², AWG 30-24, crimp connection, 1775442-1
Order No.: 36P9972
EAN: 4099889648294
MPN:
1775442-1
Unit Price (€ / pc.)
0.0178 € *
Standard delivery time from the manufacturer is: 8 Weeks
Wire-to-board connector contact, 1775442-1, TE Connectivity
Connector System: Wire-to-Board, Sealable: No, Connector & Contact Terminates To: Wire & Cable, Compatible With Wire & Cable Type: Discrete Wire, Operating Voltage: 250 VAC, Contact Base Material: Phosphor Bronze, Contact Type: Socket, Contact Mating Area Plating Material: Tin, Contact Current Rating (Max): 3 A, Connector Mounting Type: Cable Mount (Free-Hanging), Centerline (Pitch): 1.5 mm, Wire Size: 30 - 24 AWG, Wire Size: 0.05 - 0.02 mm², Operating Temperature Range: -55 - 105 °C.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 30-24 | |
| Contact material | phosphor bronze | |
| Cable cross-section | 0.02-0.05 mm² | |
| Contact surface mating area | tin-plated | |
| Version | receptacle | |
| Contact connection | crimp connection | |
| Contact surface Connection range | tin-plated |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | JP |
| Original Packaging | Reel with 15,000 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
