1746972-1 | TE Connectivity

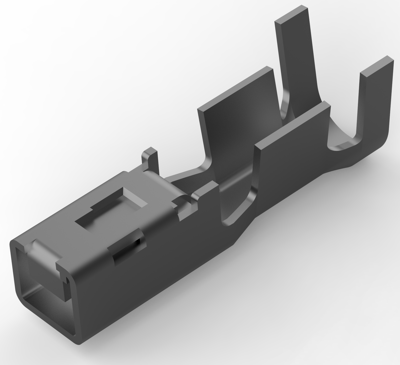

Receptacle, 2.08-3.31 mm², AWG 14-12, crimp connection, 1746972-1
Order No.: 34P8820
EAN: 4099889635539
MPN:
1746972-1
Unit Price (€ / pc.)
0.3213 € *
Available in 5 Days: 4,000 pcs. - if ordered today
Total Price:
1.61 € *
Price list
Quantity
Price per unit*
5 pcs.
0.3213 €
10 pcs.
0.2975 €
25 pcs.
0.2773 €
50 pcs.
0.2511 €
*incl. VAT plus shipping costs
Subject to prior sale
Power contact, 1746972-1, TE Connectivity
Power contact Type: Contact, Connector System: Wire-to-Wire, Connector & Contact Terminates To: Wire & Cable, Operating Voltage: 600 VAC, Operating Voltage: 600 VDC, Insulation Resistance: 1000, Contact Mating Area Plating Material: Pre-Tin, Contact Current Rating (Max): 20 A, Contact Type: Receptacle, Contact Retention Within Housing: With, Mating Tab Width: 3.1 mm, Termination Method to Wire & Cable: Crimp, Contact Retention Type Within Housing: Locking Lance, Connector Mounting Type: Cable Mount (Free-Hanging), Wire Insulation Support: Without, Wire Size: 14 - 12 AWG, Wire Size: 2.08 - 3.31 mm², Accepts Wire Insulation Diameter Range: 2.9 - 4.1 mm, Operating Temperature Range: -40 - 105 °C.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Cable cross-section | 2.08-3.31 mm² | |
| Contact surface mating area | tin-plated | |
| AWG cross-section | AWG 14-12 | |
| Insulation diameter | 2.9-4.1 mm | |
| Contact material | copper alloy | |
| Version | receptacle | |
| Contact connection | crimp connection | |
| Contact surface Connection range | tin-plated |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369095 |
| Country of origin | TH |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
