1718762-3 | TE Connectivity
Tab, 1.0-1.5 mm², AWG 17-15, crimp connection, silver-plated, 1718762-3
Unit Price (€ / pc.)
0.1131 € *
Standard delivery time from the manufacturer is: 17 Weeks

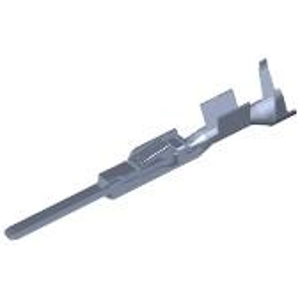

Flat connector, 1718762-3, TE Connectivity
Receptacle Style: 180°, Sealable: Yes, Primary Locking Feature: Locking Lance, Wire Type: Copper, Crimp Type: F-Crimp, Terminal & Splice Type: Tab, Mating Tab Width: 1.2 mm, Mating Tab Thickness: 0.6 mm, Interface Plating: Silver (Ag), Termination Method: Crimp, Wire Size: 18 - 16 AWG, Wire Size: 1 - 1.5 mm², Wire Size Search: 19 AWG, 20 AWG, Wire Size Search: 1 mm², 1.25 mm², 1.3 mm², 1.5 mm², Wire Insulation Diameter: 1.9 - 2.4 mm, Operating Temperature Range: -40 - 150 °C.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 17-15 | |
| Contact connection | crimp connection | |
| contact surface | silver-plated | |
| Version | tab | |
| Contact material | copper-nickel alloy | |
| Cable cross-section | 1.0-1.5 mm² | |
| Insulation diameter | 1.9-2.4 mm | |
| Contact surface Connection range | tin-plated |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369095 |
| Original Packaging | Reel with 6,000 pieces |
| Country of origin | TH |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
