1650155-1 | TE Connectivity

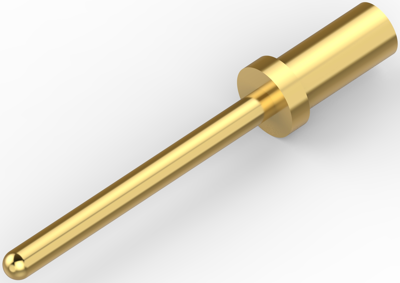

Pin contact, 0.5 mm², AWG 20, crimp connection, 1650155-1
Order No.: 36P8711
EAN: 4099889648119
MPN:
1650155-1
701-14-02109
Unit Price (€ / pc.)
1.0710 € *
Standard delivery time from the manufacturer is: 20 Weeks
Total Price:
1.07 € *
Price list
Quantity
Price per unit*
1 pcs.
1.0710 €
10 pcs.
0.9996 €
25 pcs.
0.9282 €
50 pcs.
0.8449 €
*incl. VAT plus shipping costs
Subject to prior sale
Power contact, 1650155-1, TE Connectivity
Power contact Type: Contact, Connector System: Wire-to-Wire, Connector & Contact Terminates To: Wire & Cable, Contact Mating Area Plating Material: Gold, Contact Current Rating (Max): 5 A, Contact Type: Pin, Contact Retention Within Housing: Without, Mating Pin Diameter: 1.02 mm, Termination Method to Wire & Cable: Crimp, Connector Mounting Type: Cable Mount (Free-Hanging), Wire Insulation Support: Without, Wire Size: 24 - 20 AWG, Operating Temperature Range: -55 - 105 °C.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 20 | |
| Contact surface mating area | gold-plated | |
| Contact connection | crimp connection | |
| Version | pin contact | |
| Contact material | copper alloy | |
| Cable cross-section | 0.5 mm² | |
| Insulation diameter | 0.77-1.02 mm | |
| Contact surface Connection range | gold-plated |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | HU |
Compliance
| Property | Value |
|---|---|
| Substance description | Lead |
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
