1544968-1 | TE Connectivity
Tab, 5.0-6.0 mm², AWG 10-9, crimp connection, tin-plated, 1544968-1
Order No.: 36P1884
EAN: 4099889643176
MPN:
1544968-1
Unit Price (€ / pc.)
0.5355 € *
Standard delivery time from the manufacturer is: 20 Weeks

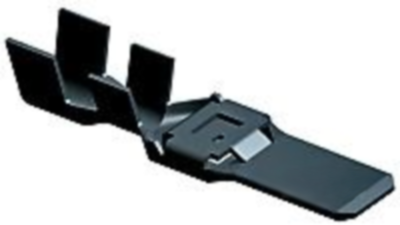

Flat connector, 1544968-1, TE Connectivity
Sealable: No, Primary Locking Feature: Clean Body, Wire Type: Copper, Crimp Type: F-Crimp, Terminal & Splice Type: Tab, Mating Tab Width: 8 mm, Mating Tab Thickness: 1 mm, Interface Plating: Tin (Sn), Termination Method: Crimp, Wire Size: 9 - 10 AWG, Wire Size: 5 - 6 mm², Wire Size Search: 10 AWG, Wire Size Search: 5 mm²,6 mm², Wire Insulation Diameter: 3.7 - 4.3 mm, Operating Temperature Range: -40 - 150 °C.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 10-9 | |
| Contact material | phosphor bronze | |
| Cable cross-section | 5.0-6.0 mm² | |
| Insulation diameter | 3.7-4.3 mm | |
| contact surface | tin-plated | |
| Version | tab | |
| Contact connection | crimp connection |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | US |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
