1544615-1 | TE Connectivity

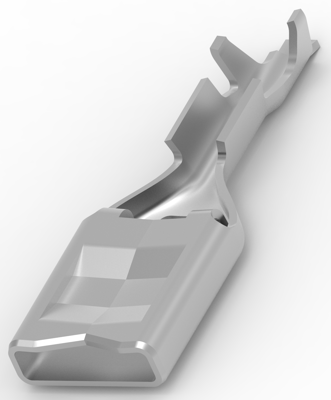

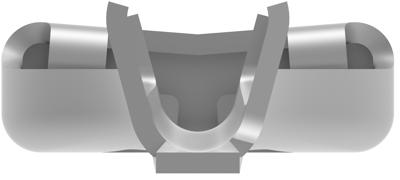

Receptacle, 0.35-0.75 mm², AWG 22-18, crimp connection, tin-plated, 1544615-1
Order No.: 36P1873
EAN: 4099889643091
MPN:
1544615-1
Unit Price (€ / pc.)
0.2392 € *
Standard delivery time from the manufacturer is: 25 Weeks
Contacts for motor vehicles, 1544615-1, TE Connectivity
Sealable: No, Primary Locking Feature: Clean Body, Automotive terminal Wire Type: Copper, Crimp Type: F-Crimp, Terminal & Splice Type: Receptacle, Mating Tab Width: 6.35 mm, Mating Tab Thickness: 0.8 mm, Automotive terminal Interface Plating: Tin (Sn), Automotive terminal Termination Method: Crimp, Wire Size: 22 - 20 AWG, Wire Size: 0.35 - 0.75 mm², Wire Size Search: 0.3 mm², 0.35 mm² , 0.4 mm², 0.5 mm², 0.6 mm², 0.75 mm², Wire Size Search: 20 AWG, 21 AWG, Wire Insulation Diameter: 1.27 - 1.78 mm, 155 °C, 170 °C, 180 °C, 185 °C, Operating Temperature Range: -40 - 185 °C.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 22-18 | |
| Contact material | copper alloy | |
| Cable cross-section | 0.35-0.75 mm² | |
| Insulation diameter | 1.27-1.78 mm | |
| contact surface | tin-plated | |
| Version | receptacle | |
| Contact connection | crimp connection |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
