1544533-1 | TE Connectivity
Receptacle, 2.0-5.0 mm², AWG 14-10, crimp connection, tin-plated, 1544533-1
Order No.: 36P2215
EAN: 4099889643404
MPN:
1544533-1

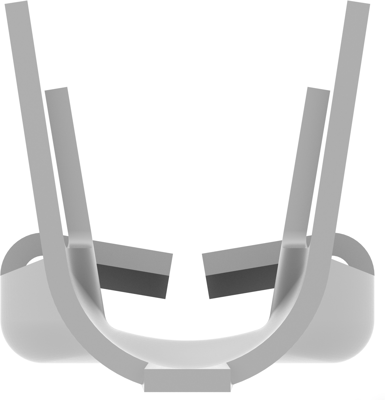

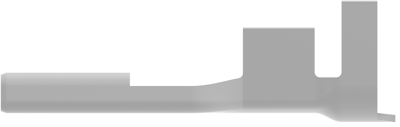

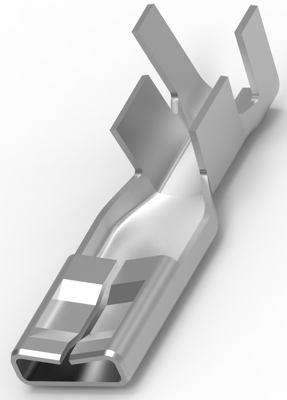

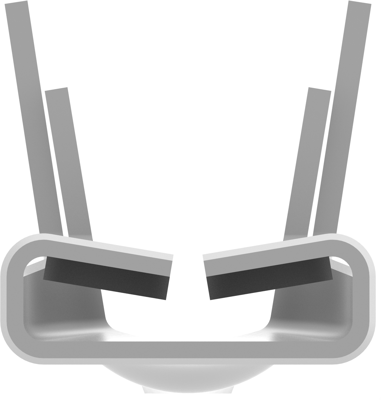

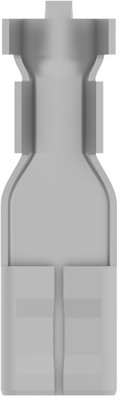

Socket contact, 1544533-1, TE Connectivity
Receptacle Style: 180°, Sealable: No, Primary Locking Feature: Clean Body, Wire Type: Copper, Crimp Type: F-Crimp, Terminal & Splice Type: Receptacle, Mating Tab Width: 5 mm, Mating Tab Thickness: 0.8 mm, Interface Plating: Tin (Sn), Termination Method: Crimp, Wire Size: 2 - 5 mm², Wire Size Search: 2 mm², 3 mm², 4 mm², 5 mm², Wire Insulation Diameter: 2.6 - 4.4 mm, Operating Temperature Range: -40 - 85 °C.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | receptacle | |
| Cable cross-section | 2.0-5.0 mm² | |
| AWG cross-section | AWG 14-10 | |
| Contact connection | crimp connection | |
| Contact material | tin | |
| contact surface | tin-plated | |
| Contact surface Connection range | tin-plated | |
| Insulation diameter | 2.6-4.4 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369095 |
| Country of origin | US |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
