1544454-1 | TE Connectivity

Receptacle, 2.3-4.3 mm², AWG 14-11, crimp connection, tin-plated, 1544454-1

Order No.: 36P2161
EAN: 4099889643367
MPN:
1544454-1

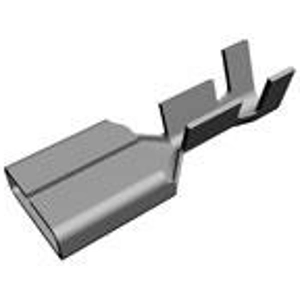

1544454-1 TE Connectivity Crimp Contacts
Image may differ
Unit Price (€ / pc.)
0.3046 € *
Available in 5 Days: 108,000 pcs. - if ordered today
Total Price:
1,218.56 € *
*incl. VAT plus shipping costs
Subject to prior sale
4000 pcs.
0.3046 €

Contacts for motor vehicles, 1544454-1, TE Connectivity

Receptacle Style: 180°, Sealable: No, Primary Locking Feature: Clean Body, Automotive terminal Wire Type: Copper, Crimp Type: F-Crimp, Terminal & Splice Type: Receptacle, Mating Tab Width: 6.35 mm, Mating Tab Thickness: 0.8 mm, Automotive terminal Interface Plating: Tin (Sn), Automotive terminal Termination Method: Crimp, Wire Size: 2.3 - 4.3 mm², Wire Insulation Diameter: 2.7 - 3.7 mm, Operating Temperature (Max): 85 °C, Operating Temperature Range: -20 - 85 °C.

Technical specifications
Filter Property Value
Cable cross-section 2.3-4.3 mm²
Contact surface Connection range tin-plated
Insulation diameter 2.7-3.7 mm
contact surface tin-plated
Contact connection crimp connection
AWG cross-section AWG 14-11
Version receptacle
Contact material brass
Logistics
Property Value
Country of origin US
Customs tariff number 85369095
Compliance
Property Value
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free Yes
