1544114-4 | TE Connectivity

Receptacle, 1.4-3.0 mm², AWG 16-12, crimp connection, tin-plated, 1544114-4

Order No.: 36P2163
EAN: 4099889643381
MPN:
1544114-4

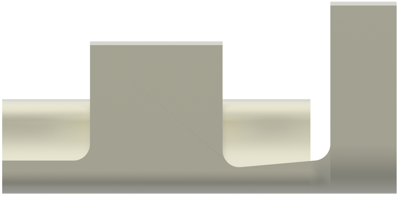

1544114-4 TE Connectivity Crimp Contacts Image 1

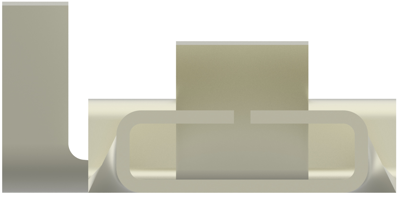

1544114-4 TE Connectivity Crimp Contacts Image 2
1544114-4 TE Connectivity Crimp Contacts Image 3
Image may differ
Unit Price (€ / pc.)
0.3213 € *
Standard delivery time from the manufacturer is: 30 Weeks
Total Price:
1,927.80 € *
*incl. VAT plus shipping costs
Subject to prior sale
6000 pcs.
0.3213 €

Contacts for motor vehicles, 1544114-4, TE Connectivity

Receptacle Style: 90°, Sealable: No, Primary Locking Feature: Clean Body, Automotive terminal Wire Type: Copper, Automotive terminal Seal Type: Family Seal or Unsealed, Crimp Type: F-Crimp, Terminal & Splice Type: Receptacle, Mating Tab Width: 6.3 mm, Mating Tab Thickness: 08 mm, Automotive terminal Interface Plating: Tin (Sn), Automotive terminal Termination Method: Crimp, Wire Size: 16 - 12 AWG, Wire Size: 1.4 - 3 mm², Wire Insulation Diameter: 2.4 - 3.5 mm, Operating Temperature Range: -40 - 125 °C.

Technical specifications
contact surface tin-plated
AWG cross-section AWG 16-12
Contact surface Connection range tin-plated
Contact connection crimp connection
Cable cross-section 1.4-3.0 mm²
Version receptacle
Contact material nickel-silver
Insulation diameter 2.4-3.5 mm
Logistics
Country of origin JP
Customs tariff number 85369040
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
