1456968-1 | TE Connectivity

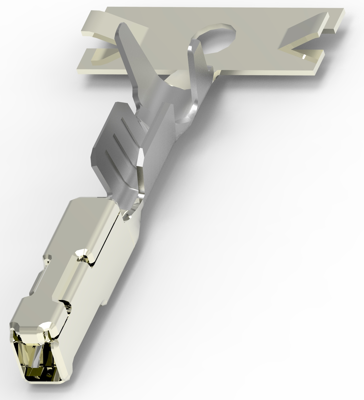

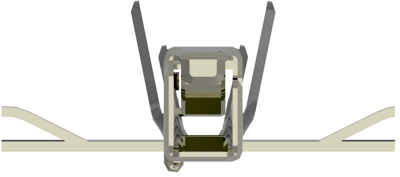

Receptacle, 0.35-0.5 mm², AWG 22-20, crimp connection, silver-plated, 1456968-1
Order No.: 35P9422
EAN: 4099889640717
MPN:
1456968-1
Unit Price (€ / pc.)
0.0821 € *
Standard delivery time from the manufacturer is: 14 Weeks
Contacts for motor vehicles, 1456968-1, TE Connectivity
Sealable: No, Primary Locking Feature: Clean Body, Automotive terminal Wire Type: Copper, Crimp Type: F-Crimp, Terminal & Splice Type: Receptacle, Mating Tab Width: 0.8 mm, Mating Tab Thickness: 0.64 mm, Automotive terminal Interface Plating: Silver (Ag), Automotive terminal Termination Method: Crimp, Wire Size: 0.35 - 0.5 mm², Wire Size Search: 0.35 mm², 0.4 mm², 0.5 mm², Wire Size Search: 20 AWG, 22 AWG, Wire Insulation Diameter: 1.5 - 1.85 mm, Operating Temperature Range: -40 - 150 °C.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 22-20 | |
| Contact material | copper alloy | |
| Cable cross-section | 0.35-0.5 mm² | |
| Insulation diameter | 1.5-1.85 mm | |
| contact surface | silver-plated | |
| Version | receptacle | |
| Contact connection | crimp connection |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85389011 |
| Country of origin | TW |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
