144617-1 | TE Connectivity

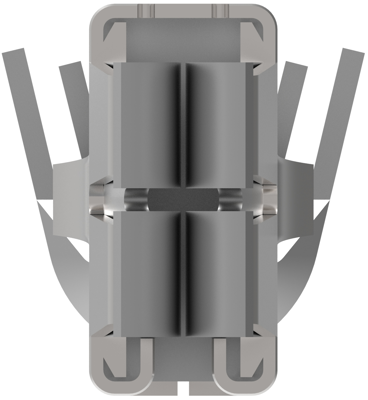

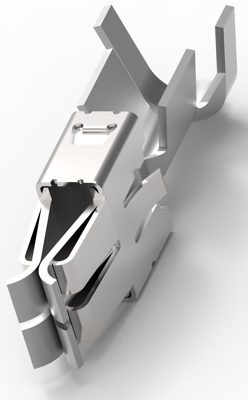

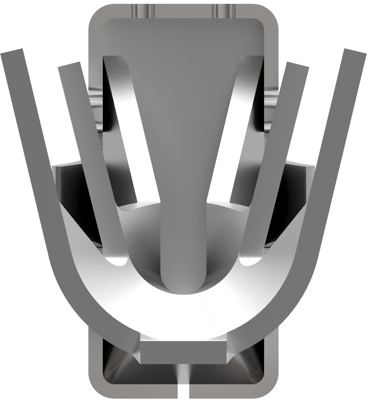

Receptacle, 1.0-3.0 mm², AWG 17-12, crimp connection, tin-plated, 144617-1
Order No.: 36P3614
EAN: 4099889646429
MPN:
144617-1
Unit Price (€ / pc.)
0.1345 € *
Standard delivery time from the manufacturer is: 17 Weeks
Contacts for motor vehicles, 144617-1, TE Connectivity
Receptacle Style: 180°, Sealable: No, Primary Locking Feature: Locking Lance, Automotive terminal Wire Type: Copper, Crimp Type: F-Crimp, Terminal & Splice Type: Receptacle, Mating Tab Width: 5.8 mm,6.3 mm, Mating Tab Thickness: 0.8 mm, Automotive terminal Interface Plating: Tin (Sn), Automotive terminal Termination Method: Crimp, Wire Size: 1 - 3 mm², Wire Size Search: 1 mm², 1.25 mm², 1.3 mm², 1.5 mm², 2 mm², 2.5 mm², 3 mm², Wire Size Search: 13 AWG, 14 AWG, 15 AWG, 16 AWG, 17 AWG, Wire Insulation Diameter: 4.4 mm, Operating Temperature Range: -40 - 100 °C.
Technical specifications
| contact surface | tin-plated | |
| AWG cross-section | AWG 17-12 | |
| Contact surface Connection range | tin-plated | |
| Contact connection | crimp connection | |
| Cable cross-section | 1.0-3.0 mm² | |
| Version | receptacle | |
| Contact material | phosphor bronze | |
| Insulation diameter | 4.4 mm |
Download
Logistics
| Country of origin | TH |
| Customs tariff number | 85366990 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
