1326032-8 | TE Connectivity

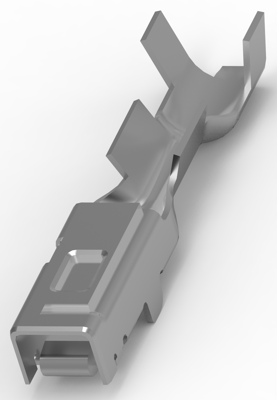

Receptacle, 0.5 mm², AWG 20, crimp connection, tin-plated, 1326032-8
Order No.: 35P8788
EAN: 4099889639223
MPN:
1326032-8
Unit Price (€ / pc.)
0.3094 € *
Standard delivery time from the manufacturer is: 11 Weeks
Contacts for motor vehicles, 1326032-8, TE Connectivity
Receptacle Style: 180°, Sealable: No, Automotive terminal Wire Type: Copper, Crimp Type: F-Crimp, Terminal & Splice Type: Receptacle, Mating Tab Width: 2.8 mm, Mating Tab Thickness: 0.8 mm, Automotive terminal Interface Plating: Tin (Sn), Automotive terminal Termination Method: Crimp, Wire Size: 20 AWG, Wire Size: 0.5 mm², Wire Size Search: 0.5 mm², Wire Size Search: 20 AWG, Wire Insulation Diameter: 1.2 - 2.3 mm.
Technical specifications
| contact surface | tin-plated | |
| AWG cross-section | AWG 20 | |
| Contact surface Connection range | tin-plated | |
| Contact connection | crimp connection | |
| Cable cross-section | 0.5 mm² | |
| Version | receptacle | |
| Contact material | copper alloy | |
| Insulation diameter | 1.2-2.3 mm |
Download
Logistics
| Country of origin | TW |
| Customs tariff number | 85369040 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
