1326032-5 | TE Connectivity

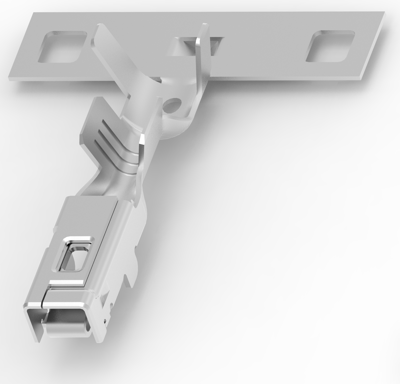

Receptacle, 2.0 mm², AWG 14, crimp connection, tin-plated, 1326032-5
Order No.: 35P8781
EAN: 4099889639155
MPN:
1326032-5
Unit Price (€ / pc.)
0.2368 € *
Standard delivery time from the manufacturer is: 29 Weeks
Contacts for motor vehicles, 1326032-5, TE Connectivity
Receptacle Style: 180°, Sealable: Yes, Automotive terminal Seal Type: Single Wire Seal (SWS), Crimp Type: F-Crimp, Terminal & Splice Type: Receptacle, Mating Tab Width: 2.8 mm, Mating Tab Thickness: 0.8 mm, Automotive terminal Interface Plating: Tin (Sn), Automotive terminal Termination Method: Crimp, Wire Size: 14 AWG, Wire Size: 1.5 mm², 2.5 mm², Wire Size Search: 2 mm², Wire Size Search: 14 AWG, Wire Insulation Diameter: 2.34 - 2.69 mm, Operating Temperature Range: -40 - 125 °C.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | receptacle | |
| Cable cross-section | 2.0 mm² | |
| Contact connection | crimp connection | |
| AWG cross-section | AWG 14 | |
| Contact material | copper alloy | |
| Contact surface Connection range | tin-plated | |
| Insulation diameter | 2.34-2.69 mm | |
| contact surface | tin-plated |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | TW |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
