1326032-4 | TE Connectivity
Receptacle, 1.25 mm², AWG 16, crimp connection, tin-plated, 1326032-4
Order No.: 35P8783
EAN: 4099889639179
MPN:
1326032-4
Unit Price (€ / pc.)
0.357 € *
Available in 5 Days: 6,686 pcs. - if ordered today

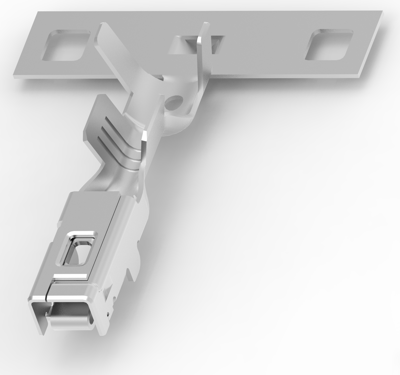

Socket contact, 1326032-4, TE Connectivity
Receptacle Style: 180°, Sealable: Yes, Seal Type: Single Wire Seal (SWS), Crimp Type: F-Crimp, Terminal & Splice Type: Receptacle, Mating Tab Width: 2.8 mm, Mating Tab Thickness: 0.8 mm, Interface Plating: Tin (Sn), Termination Method: Crimp, Wire Size: 16 AWG, Wire Size: 1.25 - 1.4 mm², Wire Size Search: 16 AWG, Wire Size Search: 1.25 mm², 1.3 mm², Wire Insulation Diameter: 1.88 - 2.34 mm, Operating Temperature Range: --40 - 125 °C.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 16 | |
| Contact material | copper alloy | |
| Cable cross-section | 1.25 mm² | |
| Insulation diameter | 1.88-2.34 mm | |
| contact surface | tin-plated | |
| Version | receptacle | |
| Contact connection | crimp connection | |
| Contact surface Connection range | tin-plated |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | TW |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
