1326032-1 | TE Connectivity

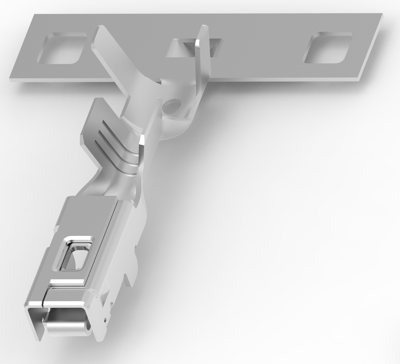

Receptacle, 0.35 mm², AWG 22, crimp connection, tin-plated, 1326032-1
Order No.: 35P8789
EAN: 4099889639230
MPN:
1326032-1
Unit Price (€ / pc.)
0.3213 € *
Standard delivery time from the manufacturer is: 7 Weeks
Contacts for motor vehicles, 1326032-1, TE Connectivity
Sealable: Yes, Automotive terminal Wire Type: Copper, Automotive terminal Seal Type: Single Wire Seal (SWS), Terminal & Splice Type: Receptacle, Mating Tab Width: 2.8 mm, Mating Tab Thickness: 0.8 mm, Automotive terminal Interface Plating: Tin (Sn), Automotive terminal Termination Method: Crimp, Wire Size: 22 AWG, Wire Size: 0.35 mm², Wire Size Search: 0.35 mm², Wire Size Search: 22 AWG, Wire Insulation Diameter: 1.2 - 3.3 mm.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | receptacle | |
| Cable cross-section | 0.35 mm² | |
| Contact connection | crimp connection | |
| AWG cross-section | AWG 22 | |
| Contact material | copper alloy | |
| Insulation diameter | 1.2-3.3 mm | |
| contact surface | tin-plated |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | TW |
| Customs tariff number | 85369040 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
