1326031-5 | TE Connectivity

Tab, 2.5 mm², AWG 14, crimp connection, tin-plated, 1326031-5

Order No.: 35P8771
EAN: 4099889639063
MPN:
1326031-5

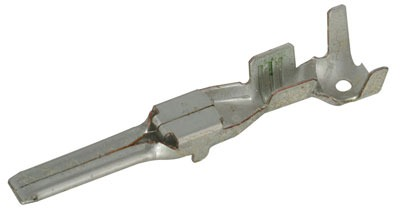

1326031-5 TE Connectivity Crimp Contacts
Image may differ
Unit Price (€ / pc.)
0.2749 € *
Standard delivery time from the manufacturer is: 29 Weeks
Total Price:
2,144.14 € *
*incl. VAT plus shipping costs
Subject to prior sale
7800 pcs.
0.2749 €

Flat connector, 1326031-5, TE Connectivity

Receptacle Style: 180°, Sealable: Yes, Seal Type: Single Wire Seal (SWS), Crimp Type: F-Crimp, Terminal & Splice Type: Tab, Mating Tab Width: 2.8 mm, Mating Tab Thickness: 0.8 mm, Interface Plating: Tin (Sn), Termination Method: Crimp, Wire Size: 14 AWG, Wire Size: 1.5 mm², 2.5 mm², Wire Size Search: 14 AWG, Wire Size Search: 2 mm², Wire Insulation Diameter: 1.2 - 2.7 mm, Operating Temperature Range: -40 - 125 °C.

Technical specifications
contact surface tin-plated
AWG cross-section AWG 14
Contact surface Connection range tin-plated
Contact connection crimp connection
Cable cross-section 2.5 mm²
Version tab
Contact material copper alloy
Insulation diameter 1.2-2.7 mm
Logistics
Country of origin TW
Customs tariff number 85366990
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
