1326031-2 | TE Connectivity

Tab, 0.5 mm², AWG 20, crimp connection, tin-plated, 1326031-2

Order No.: 35P8776
EAN: 4099889639117
MPN:
1326031-2

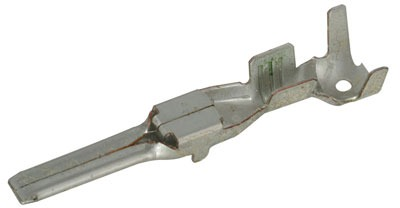

1326031-2 TE Connectivity Crimp Contacts Image 1
1326031-2 TE Connectivity Crimp Contacts Image 2
Image may differ
Unit Price (€ / pc.)
0.2499 € *
Standard delivery time from the manufacturer is: 29 Weeks
Total Price:
2,249.10 € *
*incl. VAT plus shipping costs
Subject to prior sale
9000 pcs.
0.2499 €

Flat connector, 1326031-2, TE Connectivity

Receptacle Style: 180°, Sealable: Yes, Seal Type: Single Wire Seal (SWS), Crimp Type: F-Crimp, Terminal & Splice Type: Tab, Mating Tab Width: 2.8 mm, Mating Tab Thickness: 0.8 mm, Interface Plating: Tin (Sn), Termination Method: Crimp, Wire Size: 20 AWG, Wire Size: 0.5 mm², Wire Size Search: 20 AWG, Wire Size Search: 0.5 mm², Wire Insulation Diameter: 1.4 - 1.85 mm, Operating Temperature Range: -40 - 125 °C.

Technical specifications
contact surface tin-plated
AWG cross-section AWG 20
Contact surface Connection range tin-plated
Contact connection crimp connection
Cable cross-section 0.5 mm²
Version tab
Contact material copper alloy
Insulation diameter 1.4-1.85 mm
Logistics
Country of origin TW
Customs tariff number 85369040
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
