1326029-4 | TE Connectivity

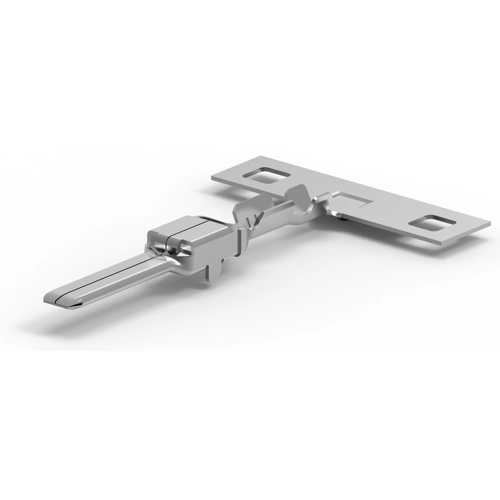

Tab, 4.0 mm², AWG 12, crimp connection, tin-plated, 1326029-4
Order No.: 35P8768
EAN: 4099889639032
MPN:
1326029-4
Unit Price (€ / pc.)
0.2916 € *
Standard delivery time from the manufacturer is: 11 Weeks
Contacts for motor vehicles, 1326029-4, TE Connectivity
Receptacle Style: 180°, Sealable: No, Primary Locking Feature: Clean Body, Automotive terminal Wire Type: Copper, Crimp Type: F-Crimp, Terminal & Splice Type: Tab, Mating Tab Width: 2.8 mm, Mating Tab Thickness: 0.8 mm, Automotive terminal Interface Plating: Tin (Sn), Automotive terminal Termination Method: Crimp, Wire Size: 12 - 10 AWG, Wire Size: 4 mm², Wire Size Search: 4 mm², Wire Size Search: 10 AWG, 12 AWG, Wire Insulation Diameter: 3.1 - 4.04 mm, Operating Temperature Range: -40 - 125 °C.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 12 | |
| Contact material | copper alloy | |
| Cable cross-section | 4.0 mm² | |
| Insulation diameter | 3.1-4.04 mm | |
| contact surface | tin-plated | |
| Version | tab | |
| Contact connection | crimp connection | |
| Contact surface Connection range | tin-plated |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369040 |
| Country of origin | TW |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
