1-1326032-1 | TE Connectivity

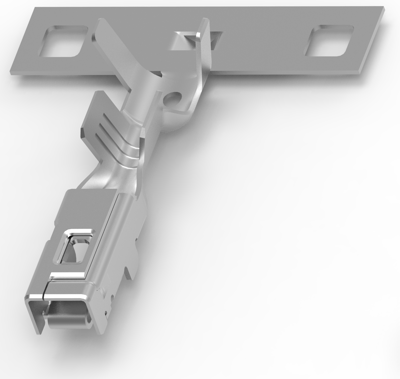

Receptacle, 2.0 mm², AWG 14, crimp connection, tin-plated, 1-1326032-1

Order No.: 35P8782
EAN: 4099889639162
MPN:
1-1326032-1
1-1326032-1 TE Connectivity Crimp Contacts
Image may differ
Unit Price (€ / pc.)
0.3213 € *
Standard delivery time from the manufacturer is: 29 Weeks
Total Price:
2,168.78 € *
*incl. VAT plus shipping costs
Subject to prior sale
6750 pcs.
0.3213 €

Contacts for motor vehicles, 1-1326032-1, TE Connectivity

Receptacle Style: 180°, Sealable: Yes, Crimp Type: F-Crimp, Terminal & Splice Type: Receptacle, Mating Tab Width: 2.8 mm, Mating Tab Thickness: 0.8 mm, Automotive terminal Interface Plating: Tin (Sn), Automotive terminal Termination Method: Crimp, Wire Size: 14 AWG, Wire Size: 1.5 mm², 2.5 mm², Wire Size Search: 2 mm², Wire Size Search: 14 AWG, Wire Insulation Diameter: 1.2 - 2.7 mm, Operating Temperature Range: -40 - 125 °C.

Technical specifications
contact surface tin-plated
AWG cross-section AWG 14
Contact surface Connection range tin-plated
Contact connection crimp connection
Cable cross-section 2.0 mm²
Version receptacle
Contact material copper alloy
Insulation diameter 1.2-2.7 mm
Logistics
Country of origin CZ
Customs tariff number 85366990
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
