1-1326031-1 | TE Connectivity

Tab, 3.0 mm², AWG 12, crimp connection, tin-plated, 1-1326031-1

Order No.: 35P8770
EAN: 4099889639056
MPN:
1-1326031-1

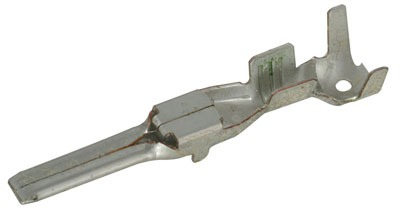

1-1326031-1 TE Connectivity Crimp Contacts Image 1
1-1326031-1 TE Connectivity Crimp Contacts Image 2
Image may differ
Unit Price (€ / pc.)
0.3094 € *
Standard delivery time from the manufacturer is: 7 Weeks
Total Price:
2,413.32 € *
*incl. VAT plus shipping costs
Subject to prior sale
7800 pcs.
0.3094 €

Contacts for motor vehicles, 1-1326031-1, TE Connectivity

Receptacle Style: 180°, Sealable: Yes, Crimp Type: F-Crimp, Terminal & Splice Type: Tab, Mating Tab Width: 2.8 mm, Mating Tab Thickness: 0.8 mm, Automotive terminal Interface Plating: Tin (Sn), Automotive terminal Termination Method: Crimp, Wire Size: 12 AWG, Wire Size: 3 - 3.5 mm², Wire Size Search: 3 mm², Wire Size Search: 12 AWG, Wire Insulation Diameter: 3.1 - 3.3 mm, Operating Temperature Range: -40 - 125 °C.

Technical specifications
contact surface tin-plated
AWG cross-section AWG 12
Contact surface Connection range tin-plated
Contact connection crimp connection
Cable cross-section 3.0 mm²
Version tab
Contact material copper alloy
Insulation diameter 3.1-3.3 mm
Logistics
Country of origin CZ
Customs tariff number 85369040
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
