1-1241418-3 | TE Connectivity

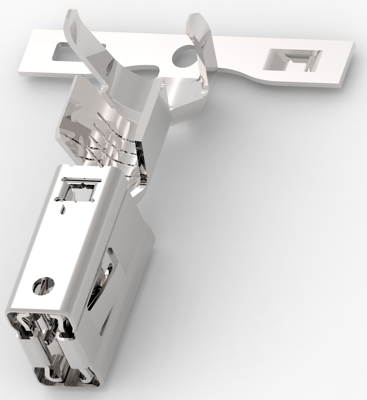

Receptacle, 4.0-6.0 mm², AWG 11-9, crimp connection, silver-plated, 1-1241418-3
Order No.: 35P9002
EAN: 4099889640052
MPN:
1-1241418-3
Unit Price (€ / pc.)
1.3804 € *
Available in 5 Days: 1,500 pcs. - if ordered today
Contacts for motor vehicles, 1-1241418-3, TE Connectivity
Receptacle Style: 180°, Sealable: Yes, Primary Locking Feature: Locking Lance, Automotive terminal Wire Type: Copper, Crimp Type: F-Crimp, Terminal & Splice Type: Receptacle, Mating Tab Width: 4.8 mm, 5.8 mm, 6.3 mm, Mating Tab Thickness: 0.8 mm, Automotive terminal Interface Plating: Silver (Ag), Automotive terminal Termination Method: Crimp, Wire Size: 4 - 6 mm², Wire Size Search: 4 mm², 5 mm², 6 mm², Wire Insulation Diameter: 3.4 - 4.3 mm, Operating Temperature Range: -40 - 140 °C.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Cable cross-section | 4.0-6.0 mm² | |
| Contact connection | crimp connection | |
| Insulation diameter | 3.4-4.3 mm | |
| contact surface | silver-plated | |
| Contact material | copper-nickel alloy | |
| Version | receptacle | |
| AWG cross-section | AWG 11-9 | |
| Contact surface Connection range | tin-plated |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | CZ |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
