T2050802101-007 | TE Connectivity

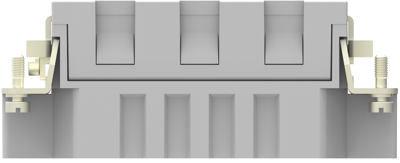

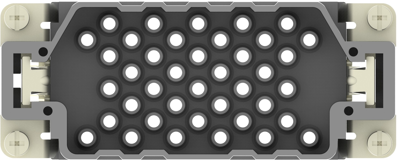

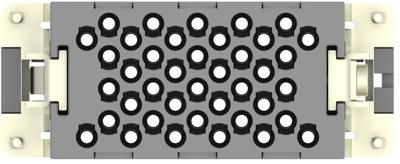

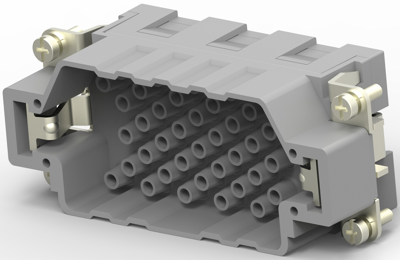

Pin insert, H-B 16, 40 pole, crimp connection, T2050802101-007
Order No.: 72P3586
EAN: 4099891620363
MPN:
T2050802101-007
Unit Price (€ / pc.)
25.9658 € *
Available in 5 Days: 40 pcs. - if ordered today
Total Price:
25.97 € *
Price list
Quantity
Price per unit*
1 pcs.
25.9658 €
5 pcs.
24.6211 €
10 pcs.
23.0265 €
25 pcs.
21.0035 €
*incl. VAT plus shipping costs
Subject to prior sale
Pin insert, T2050802101-007, TE Connectivity
The T2050802101-007 provides a high level of flexibility when configuring railway connector system. This product can be configured to hold from 1 to 216 pins and enable signal, data and power to be transmitted via one single connector. Also includes specifications on fire, smoke and toxicity (FST) compliance.
Features
- Compliance with safety regulations
- Reliable electrical connection
- Time-saving with easy assembly of the modular inserts
- Decrease installation cost with system modularity design
Applications
- Traction converters
- Power distribution
- Intercar jumpers
- Fire protection on railway vehicles
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Contact connection | crimp connection | |
| Shell size | H-B 16 | |
| Pin number | 40 pole | |
| Version | pin insert |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85389099 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
