5-1814823-1 | TE Connectivity

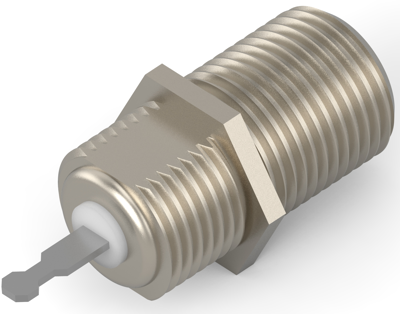

F panel socket 75 Ω, solder connection, straight, 5-1814823-1
Unit Price (€ / pc.)
1.7493 € *
Available in 5 Days: 2,872 pcs. - if ordered today
Total Price:
262.40 € *
Price list
Quantity
Price per unit*
150 pcs.
1.7493 €
300 pcs.
1.7255 €
*incl. VAT plus shipping costs
Subject to prior sale
RF Connector, 5-1814823-1, TE Connectivity
RF Interface: F Series, RF Connector Style: Jack, Connector System: Cable-to-Panel, Sealable: No, Number of Positions: 1, Number of Coaxial Contacts: 1, Impedance: 75 Ω, Cable Connector Orientation: Straight, Body Material: Zinc Alloy, Body Plating Material: Nickel, RF Connector Center Contact Plating Material: Tin, RF Connector Center Contact Material: Phosphor Bronze, Panel Attachment Style: Front Mount, RF Connector Coupling Mechanism: Threaded, RF Contact Captivation Method: Mechanical, Detent: Without, RF Connector Mated Outer Diameter (Approximate): 7.6 mm, Operating Temperature Range: -55 – 85 °C, Operating Frequency: 2 GHz, Packaging Quantity: 1, Packaging Method: Box, Dielectric Material: Polypropylene
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Impedance | 75 Ω | |
| Contact connection | solder connection | |
| Connector | F | |
| Design | straight | |
| Product type | panel socket | |
| Contact material | phosphor bronze |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | US |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
